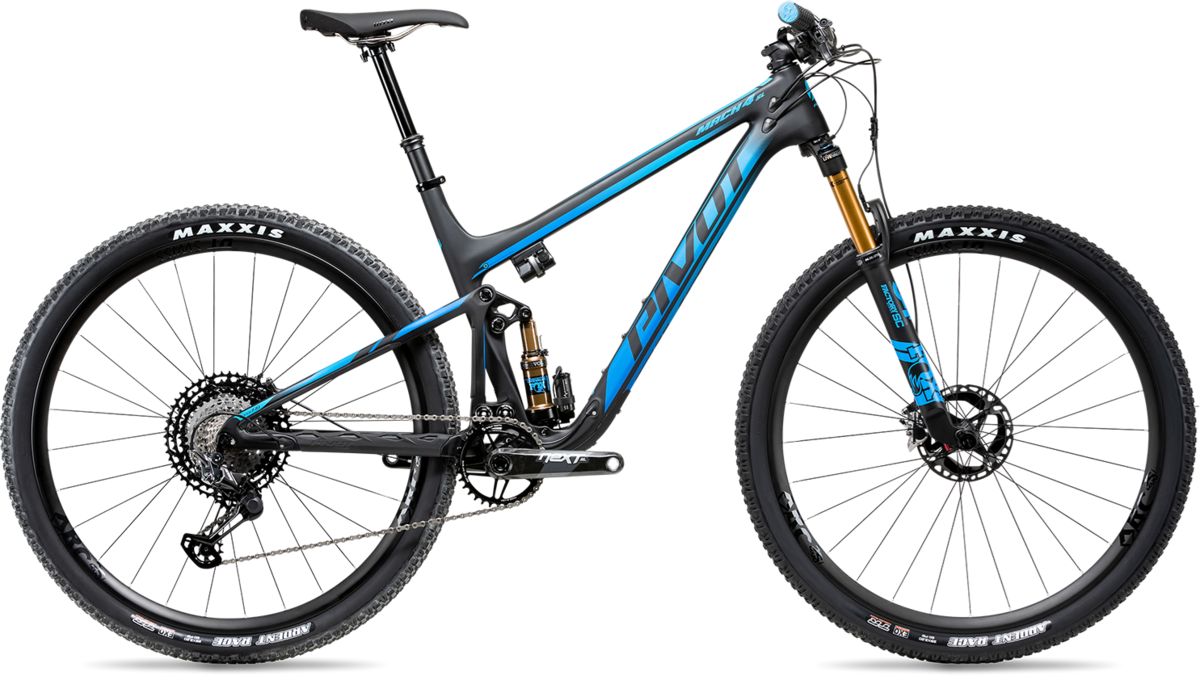

Pivot Cycles Mach 4 SL Pro XT/XTR

Pivot Cycles Mach 4 SL Pro XT/XTR
Image differs from actual product (see Specs for details)
  • Image differs from actual product (see Specs for details)
  • Image differs from actual product (see Specs for details)
  • Image differs from actual product (see Specs for details)
Color: Blue
Size: Select size
Please select options Unavailable
This product is not available for online purchase. Please call us or visit our store.


The all-new Mach 4 SL is designed to let World Cup level athletes capitalize on every inch of increasingly technical courses and generate speed where others hesitate. Our engineers have pushed the boundaries in every conceivable metric of cross country performance. It’s the lightest, fastest 100mm travel XC race bike we’ve ever developed. Go ahead, turn yourself inside out and leave it all out on the race course because the new Mach 4 SL leaves nothing on the table.

Cross country racers know that every gram counts. Pivot’s engineers didn’t set out to cut a few grams – they insisted on slashing hundreds. Starting at 1930 grams (including shock), the Mach 4 SL takes a front row seat in the ultralight full suspension category and has the best stiffness to weight ratios we’ve ever created. The new Mach 4SL is over 300 grams lighter than its feathery predecessor, the Mach 429 SL - that’s ¾ of a pound! Optimized tube shapes, a more compact frame design, exotic hi-mod materials, and a dual upright, reinforced swingarm push strength and stiffness while allowing weight to be shaved everywhere. More weight evaporates with an integrated headset and race-proven carbon suspension bearing pockets that leave almost no metal in the frame. Steep climbs and sharp accelerations never felt so good – or fast.

The Mach 4 SL frame features full Fox Live Valve integration for next level cross country suspension. Live Valve’s electronically activated suspension system senses impacts and knows when you’re climbing or descending. It reacts to the terrain 100 times faster than the blink of an eye, so you never feel the system actuating; the suspension is just perfect all the time. The system automatically activates tens of thousands of times during a race or ride for the ultimate in pedaling efficiency and control in rough terrain without any rider input. Plus, five different settings ranging from Pro level World Cup firm to trail riding plush are a mere push of a button away. The efficiency benefits are undeniable, and the speed gained on every part of the course is truly mind-blowing.

Proper fit is critical to maximizing our body’s output, so we made sure the Mach 4 SL fits the widest range of riders and all genders without compromise. The extra-small size fits riders down to 4”10” with a lower standover height than even our Mach 4 Carbon with 27.5” wheels, and the extra-large size fits riders up to 6’7” tall. A shorter stack, longer reach, and steeper seat angle put you in a powerful position to churn out the watts mile after mile. Size-specific carbon layups and shock tunes make sure all riders experience the same cutting edge performance and ride across the size range.

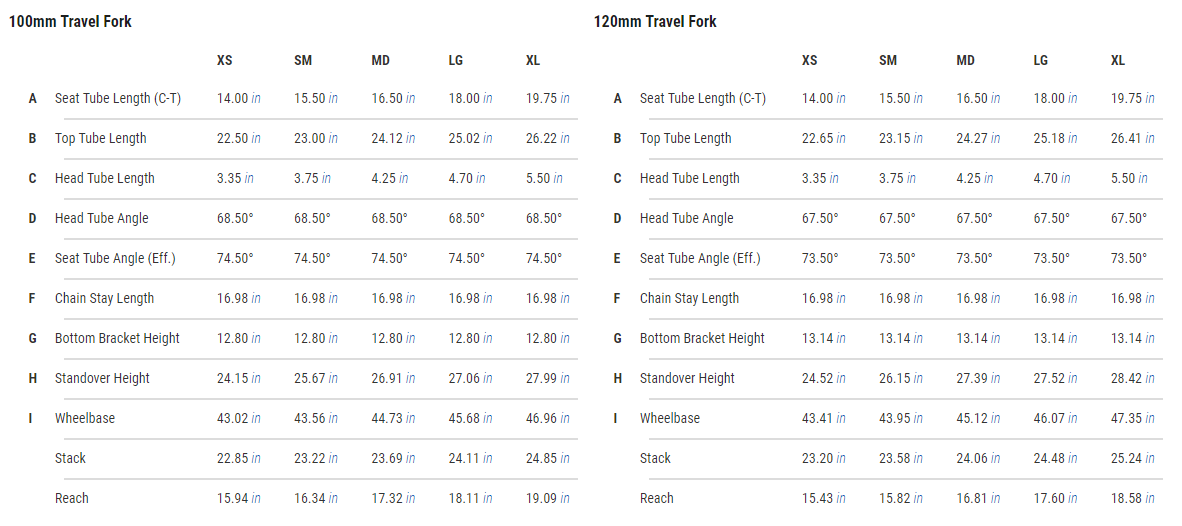

Technical features and dropper posts are now a common part of World Cup cross country racing, so geometry needs have evolved. The Mach 4 SL comes with a slacker head angle, longer reach and shorter stays for a whole new feel and confidence on fast, tricky descents. What was formerly sketchy, steep and nervous is now stable, planted and responsive - traits that cut precious seconds off lap times and save energy for that final sprint to the line. What’s more, the new school geometry also lets this cross-country race bike flirt with trail bike versatility outside of the course tape. If fast is fun, this might be the most exciting bike we’ve ever made.

The shock layout may be different, but the 100mm travel dw-link suspension keeps its legendary and familiar ride qualities: ultimate pedaling efficiency, reactive to impacts under power, and fully active while braking – its everything you want in an XC race suspension system. New metric shock with size specific tunes provide more support, control, and speed than ever before.

A dropper seatpost allows you to quickly lower and raise your seat to give you an ideal riding position. Dropping your seat creates a lower center of gravity for better control and maneuverability on steep descents, while raising it puts you at normal riding height for efficient pedaling.

Construction can include either hydraulic- or cable-actuated systems and the post’s travel can either be infinitely adjustable or stopped at set intervals, depending on the model.

Dropper seatposts come in standard lengths and diameters and vary by the amount of travel.


Frame Mach 4 SL
Fork Fox Factory Stepcast 34 29" w/ Remote, 44mm offset - 120mm
Headset Pivot Precision Sealed Integrated Cartridge
Rear Shock Fox Factory DPS w/ Remote
Rims/Wheels DT Swiss M1700, w/ 36t star ratchet, 25mm - 29"
Tires Maxxis Ardent Race 29" x 2.2" TR, EXO - w/ Stan's Sealant
Crankset Race Face Aeffect SL
Chainrings 30T
Chain Shimano HG700 11-Speed
Rear Derailleur Shimano XTR M9000 GS 11-Speed
Cassette/Rear Cogs Shimano XT M8000 11-46T
Shifters Shimano XT M8000 11-Speed
Handlebars Phoenix Team Low Rise Carbon - 740mm
Tape/Grips Phoenix Team Padloc
Stem Phoenix Team XC/Trail - 75mm
Brakes Shimano XT M8000
Saddle Phoenix WTB Pro Volt
Seat Post KS 100mm (XS), Fox Transfer 125mm (SM-LG), Fox Transfer 150mm (XL)

* Subject to change without notice.


Part Numbers

Option MPN
Blue / X-Small 004SLV129AXTPR1BLUXS100NN
Blue / Small 004SLV129AXTPR1BLUSM125NN
Blue / Medium 004SLV129AXTPR1BLUMD125NN
Blue / Large 004SLV129AXTPR1BLULG125NN
Blue / X-Large 004SLV129AXTPR1BLUXL150NN
Cherry / X-Small 004SLV129AXTPR1CHYXS100NN
Cherry / Small 004SLV129AXTPR1CHYSM125NN
Cherry / Medium 004SLV129AXTPR1CHYMD125NN
Stealth / X-Small 004SLV129AXTPR1STLXS100NN
Stealth / Small 004SLV129AXTPR1STLSM125NN
Stealth / Medium 204SLV129AXTPR1STLMD125N
Stealth / Large 004SLV129AXTPR1STLLG125NN
Stealth / X-Large 004SLV129AXTPR1STLXL150NN
