Details

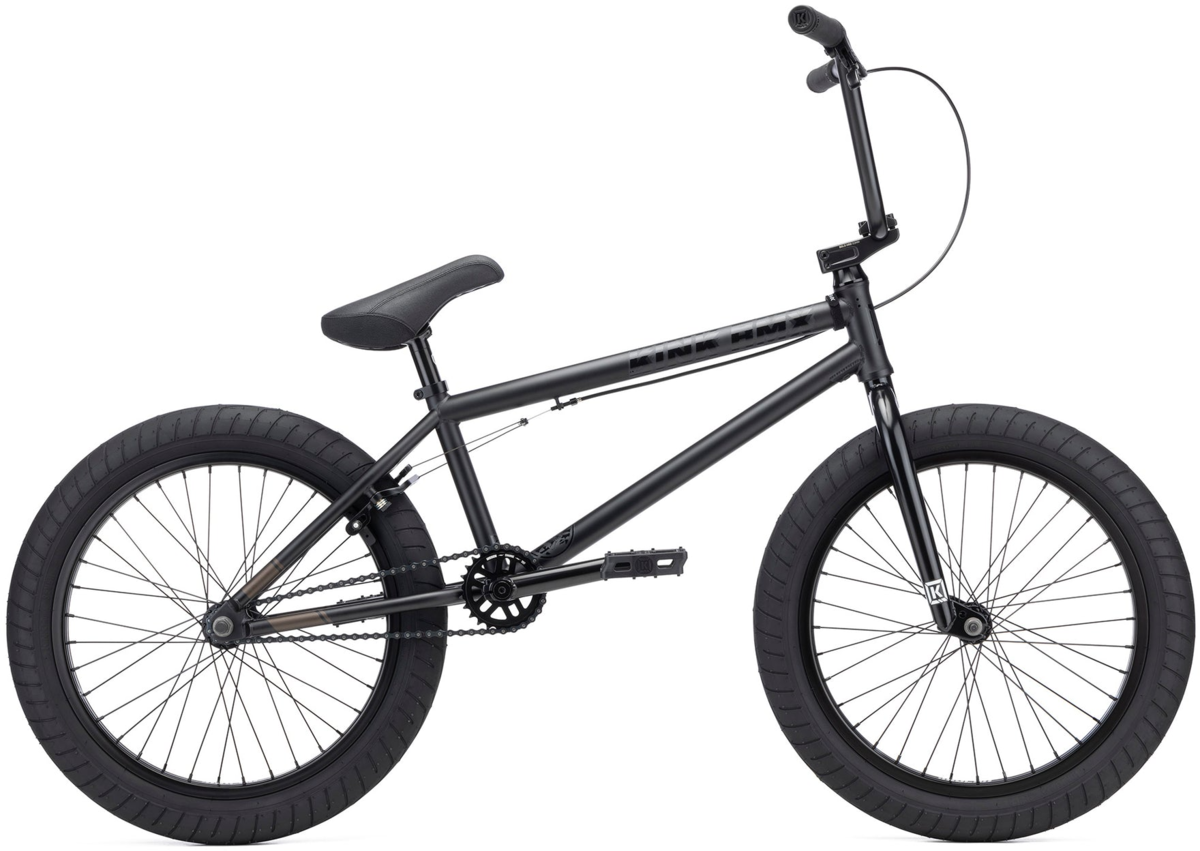

The Whip is where our line really gets exciting. This bike is great for all types of riding, from street, plaza, park, and even trails. The 100% 4130 chromoly tubing used throughout the entire frame, fork, and handlebar set means you can go hard on this bike without worry. On top of that, the Whip features fully sealed bearings everywhere, which means a smoother ride and drastically reduced maintenance. The Whip comes in a Midnight Black colorway and is also available in an XL size for taller riders.
| Toptube Length | 20.5" |
|---|---|
| Chainstay Length | 13.25" |
| Headtube Angle | 75° |
| Seattube Angle | 71° |
| Standover Height | 9? |
| Bottom Bracket Height | 11.6" |
| Fork Offset | 32mm |
| Rider Height | Bike Size | Toptube Length |
|---|---|---|
| 2'4" - 3'0" (71 - 91 cm) | 12" | 12" - 12.5" |
| 2'8" - 3'6" (81 - 106 cm) | 14" | 14" - 14.5" |
| 3'2" - 4'0" (96 - 122 cm) | 16" | 16" - 16.5" |
| 4'0" - 4'10" (122 - 147 cm) | 18" | 18" - 18.5" |
| 4'10" - 5'3" (147 - 157 cm) | 20" | 19.75" - 20.25" |
| 5'3" - 5'6" (157 - 168 cm) | 20" | 20" - 20.5" |
| 5'6" - 5'9" (168 - 175 cm) | 20" | 20.25" - 20.75" |
| 5'9" - 6'0" (175 - 183 cm) | 20" | 20.5" - 21" |
| 6'0" - 6'3"+ (183 - 190 cm +) | 20" | 20.75" - 21.5" |
| 5'4" - 6'2"+ (162 - 188 cm +) | 26" | 22" - 22.5" |
Specs
| Frame | Kink Whip 100% 4130 Chromoly |
|---|---|
| Fork | Kink Stryker 100% 4130 Chromoly Tapered Fork Legs |
| Rims | Mission Mylar |
| Hubs | FRONT HUB: Mission Foxtrot Sealed 3/8? Axle/REAR HUB: Mission Engage Sealed Cassette 14mm |
| Tires | Kink Sever 2.4" |
| Bottom Bracket | Sealed Mid 19mm |
| Crankset | Kink Ridge 3pc Tubular Chromoly 170mm – 8 Spline |
| Chainrings | 9T |
| Chain | Mission 410 |
| Brakes | Mission Cease V2 |
| Brake Levers | Mission Token |
| Handlebars | Kink T900 9" 100% 4130 Chromoly |
| Tape/Grips | Kink Form, Thrust Barends |
| Stem | Kink Bold HRD 50mm |
| Headset | Mission Sealed Integrated (41.8 x 45) |
| Seatpost | Mission Stealth |
| Saddle | Kink Duran Stealth |
| Pedals | Kink Hemlock |
* Subject to change without notice.
Part Numbers
| Option | UPC | Store SKU |
|---|---|---|
| Midnight Black / One Size / 20-inch | 764613537000 | 210000215592 |
